Metrics reports

• Tier: Premium, Ultimate
• Offering: GitLab.com, GitLab Self-Managed, GitLab Dedicated

Metrics reports display custom metrics in merge requests to track performance, memory usage, and other measurements between branches.

Use metrics reports to:

• Monitor memory usage changes.
• Track load testing results.
• Measure code complexity.
• Compare code coverage statistics.

Metrics processing workflow

When a pipeline runs, GitLab reads metrics from the report artifact and stores them as string values for comparison. The default filename is metrics.txt.

For a merge request, GitLab compares the metrics from the feature branch to the values from the target branch and displays them in the merge request widget in this order:

• Existing metrics with changed values.
• Metrics added by the merge request (marked with a New badge).
• Metrics removed by the merge request (marked with a Removed badge).
• Existing metrics with unchanged values.

Configure metrics reports

Add metrics reports to your CI/CD pipeline to track custom metrics in merge requests.

Prerequisites:

• The metrics file must use the OpenMetrics text format.

To configure metrics reports:

1. In your .gitlab-ci.yml file, add a job that generates a metrics report.
2. Add a script to the job that generates metrics in OpenMetrics format.
3. Configure the job to upload the metrics file with artifacts:reports:metrics.

For example:

metrics:
  stage: test
  script:
    - echo 'memory_usage_bytes 2621440' > metrics.txt
    - echo 'response_time_seconds 0.234' >> metrics.txt
    - echo 'test_coverage_percent 87.5' >> metrics.txt
    - echo '# EOF' >> metrics.txt
  artifacts:
    reports:
      metrics: metrics.txt

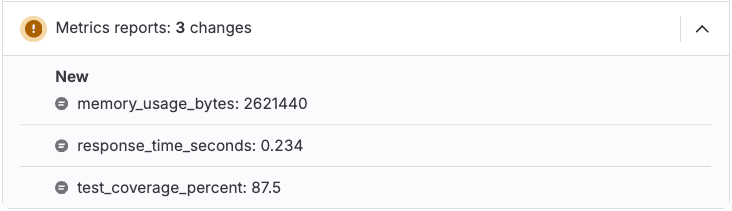

After the pipeline runs, the metrics reports display in the merge request widget.

For additional format specifications and examples, see Prometheus text format details.

Troubleshooting

When working with metrics reports, you might encounter the following issues.

Metrics reports did not change

You might see Metrics report scanning detected no new changes when viewing metrics reports in merge requests.

This issue occurs when:

• The target branch doesn't have a baseline metrics report for comparison.
• Your GitLab subscription doesn't include metrics reports (Premium or Ultimate required).

To resolve this issue:

1. Verify your GitLab subscription tier includes metrics reports.
2. Ensure the target branch has a pipeline with metrics reports configured.
3. Verify that your metrics file uses valid OpenMetrics format.
